Epoxy and polyurethane flooring systems
GREAT DESIGN SOLUTIONS FOR ALL REQUIREMENTS!
The highest mechanical load and flatness as well as long lifetime and high chemical resistance with easy maintenance at the same time, are some of the requirements which industrial floors demand. RINOL is multi-layer floor system, based on the reactive resins, that perfectly responds to those high requirements. RINOL group, with over the 40 years of developing and manufacturing experience, as well as the experience in applying the floor systems based on the cast resin, is the European leader in domain of industrial floors and floor coatings. Whether we are talking about installation of the new floor surfaces, adaptation of the existing floors to the different requirements of the usage or its reconstruction, our floor systems based on cast resins can support every load and are in compliance with all international hygiene and security standards. On individual request, we make the coved skirting, which ensure the easier cleaning and reduces the costs of the maintenance. The international attests are available upon request.
Floor-wall segment can be done with curved radial plinths different shapes and dimensions, it making easier cleaning and reduce maintenance costs. Integrated radial plinth is very important floor detail according to HACCP standard in food industry and FDA standard in pharmaceutical industry.
For all constructions we have international and national certificates.
Rinol systems are:
o mechanical resistant |
 |
 |
 |

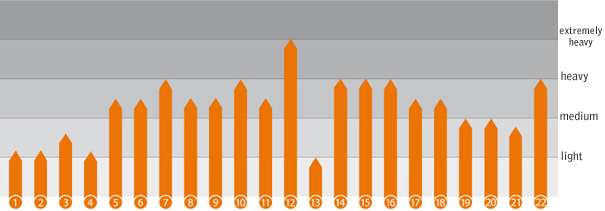

FLOOR SYSTEMS BASED MECHANICAL LOADS
EPOXY FLOOR SYSTEMS !

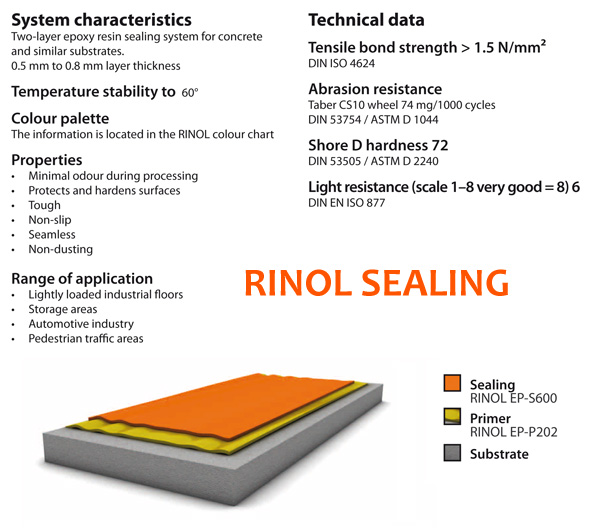

RINOL SEALING |

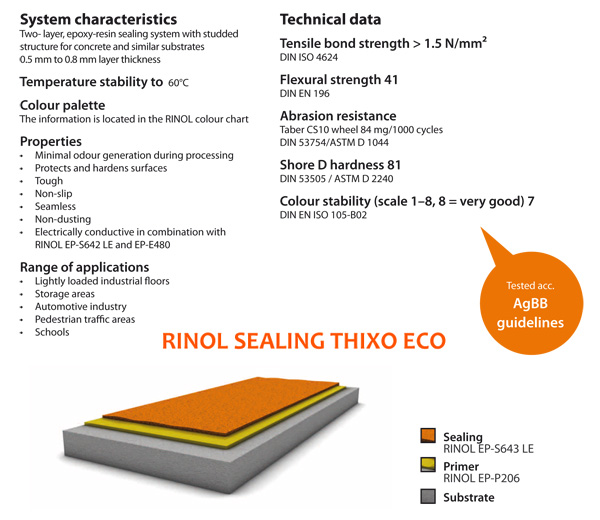

RINOL SEALING THIXO ECO |

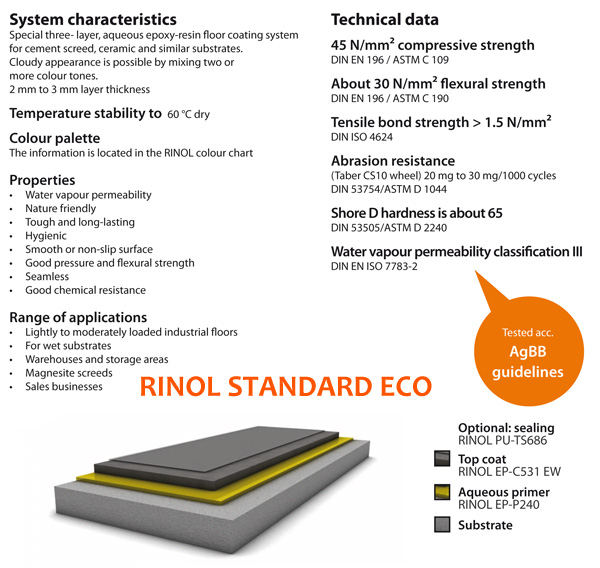

RINOL STANDARD ECO |

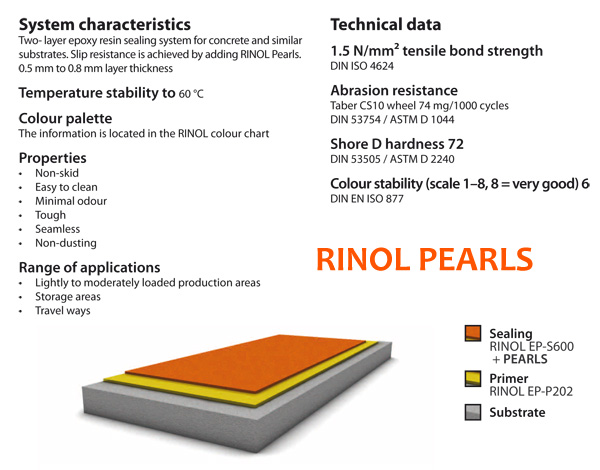

RINOL PEARLS |

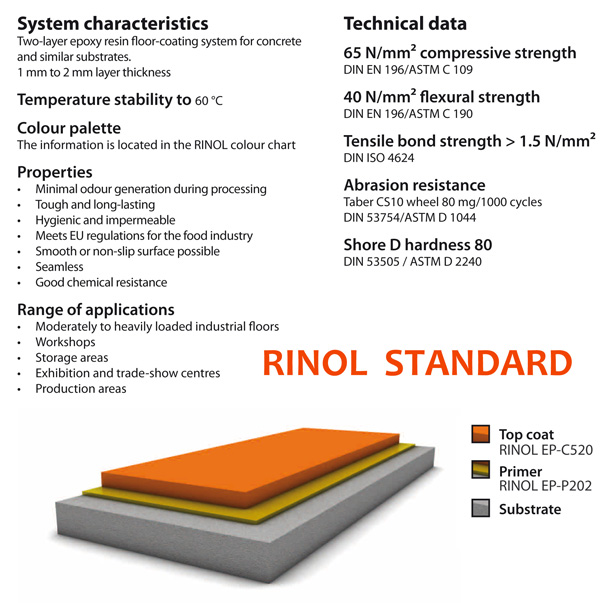

RINOL STANDARD |

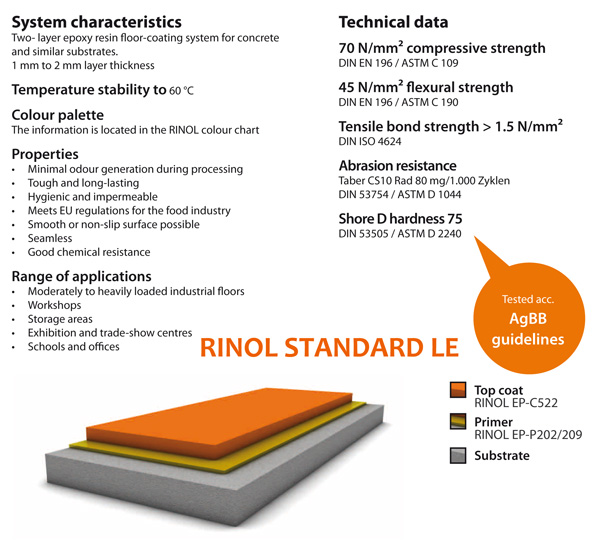

RINOL STANDARD LE |
RINOL ALLROUNDER |

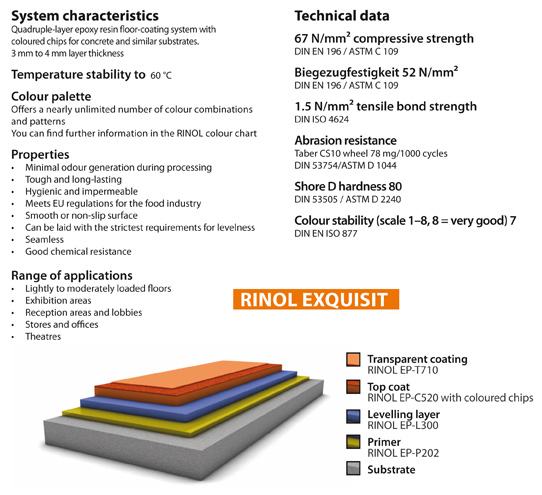

RINOL EXQUISIT |
|
|
|
|
| Abrasion-resistant coating About 1 mm to 2 mm thickness |
Abrasion-resistant coating About 1 mm to 2 mm thickness |
Smooth coating About 3 mm thickness |
Decorative, configurable coating About 3 mm to 4 mm thickness |

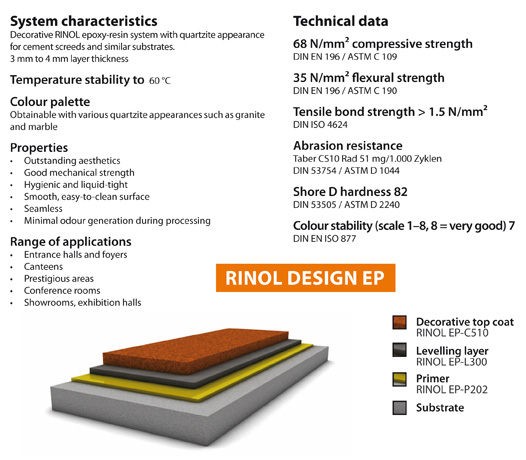

RINOL DESIGN EP |

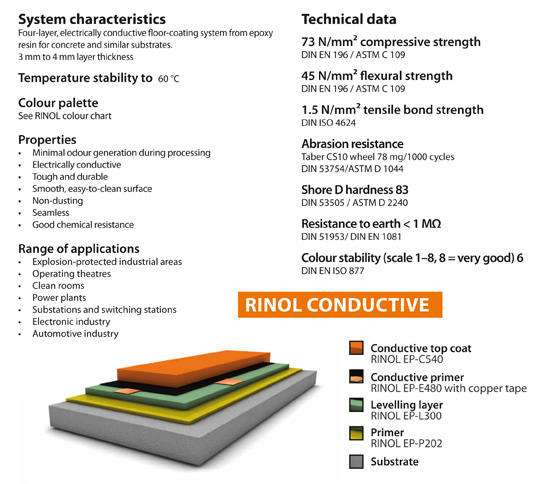

RINOL CONDUCTIVE |

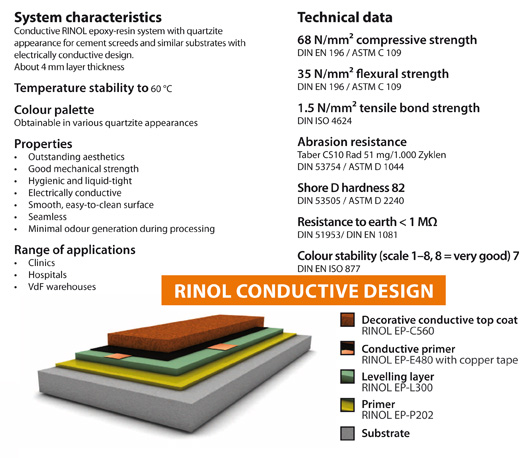

RINOL CONDUCTIVE DESIGN |

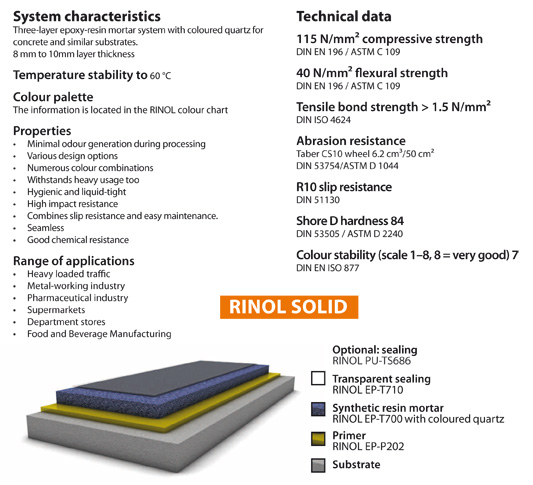

RINOL SOLID |

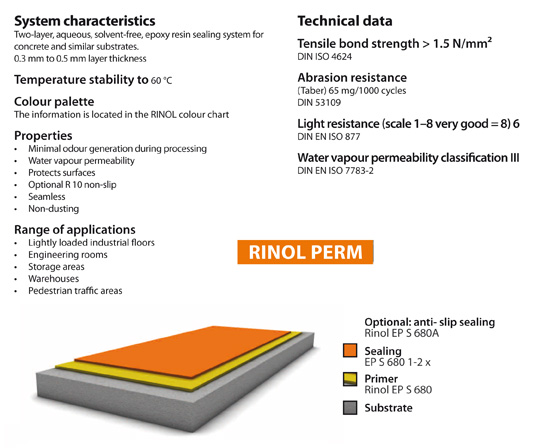

RINOL PERM |

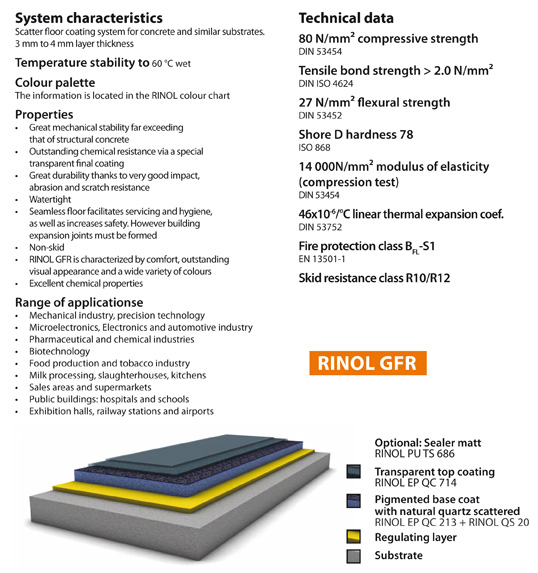

RINOL GFR |

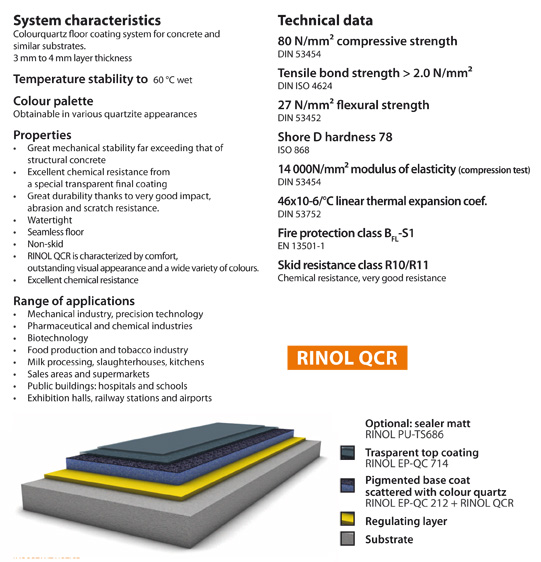

RINOL QCR |

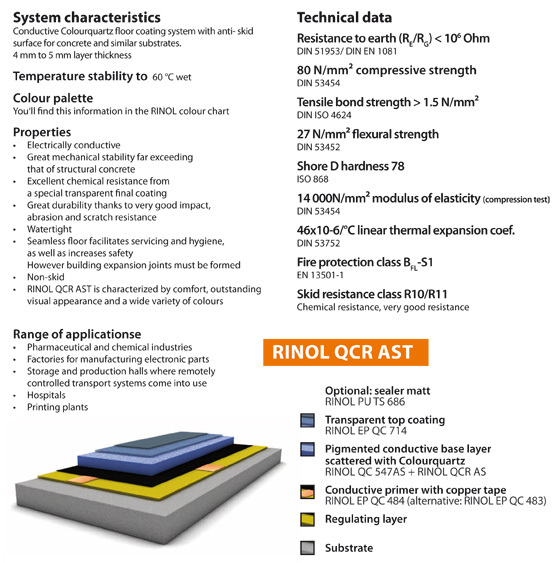

RINOL QCR AST |

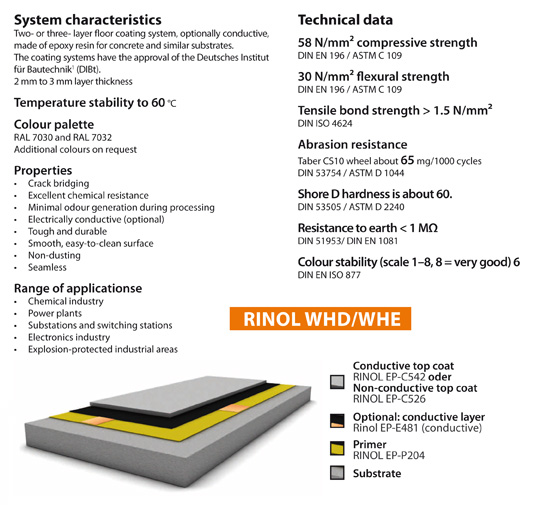

RINOL WHD/WHE |

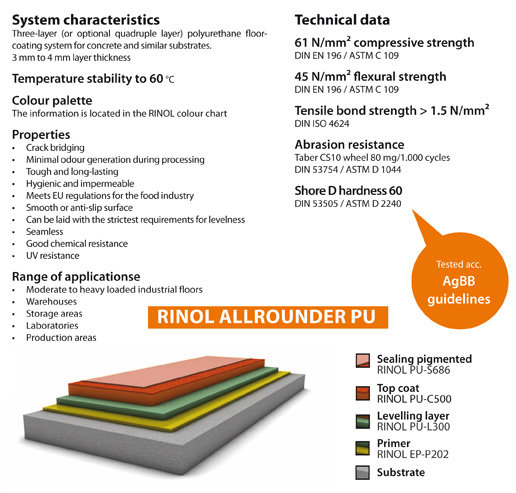

RINOL ALLROUNDER PU |

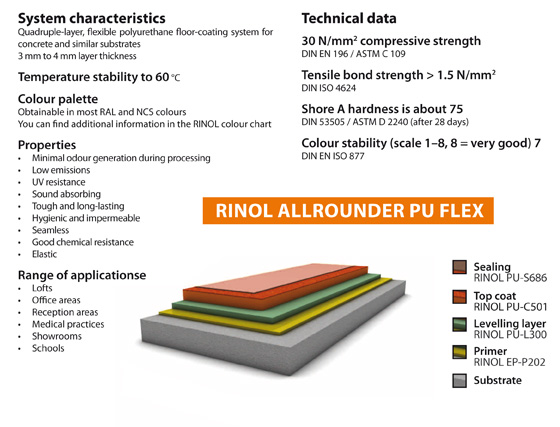

RINOL ALLROUNDER PU FLEX |

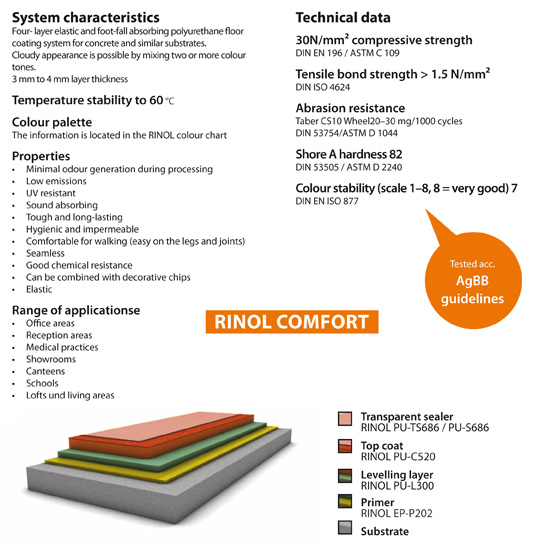

RINOL COMFORT |
|
|
|
|
| High chemical resistant coating About 2 mm to 3 mm thickness |
Semi flexible 2 K PUR coating About 3 mm to 4 mm thickness |
Decorative, comfortable-walking 2 K PUR coating About 3 mm to 4 mm thickness |
Decorative, elastic 2 K PUR coating About 3 mm to 4 mm thickness |

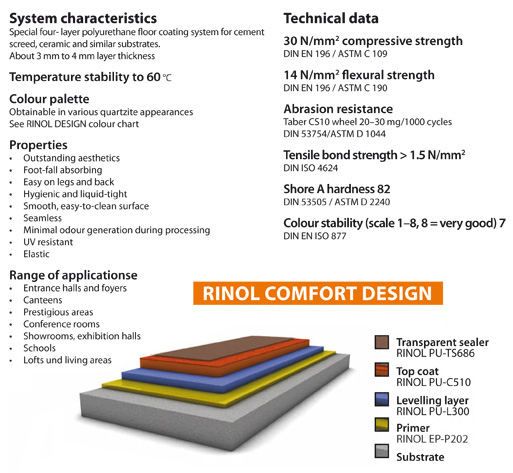

RINOL COMFORT DESIGN |

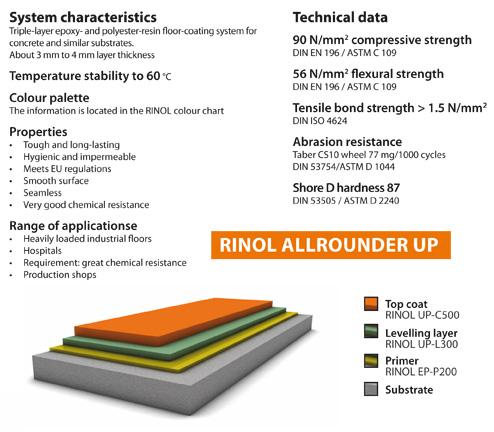

RINOL ALLROUNDER UP |
|
|
||
| Decorative, comfortable-walking 2 K PUR coating (quartzite appearance) Around 3 mm to 4 mm thickness |
Polyester resin coating About 3 mm to 4 mm thickness |
SAFETY TESTING FOR YOU!
| Our floor coating systems are the result of many years of the experiences and continuous development in our laboratories. Those systems, for your safety, are continuously examined by the independent experts; moreover, they possess all the important international attests and certificates (ex. DIN EN JSO 9001). |
CONSULTING:
Consulting means, solving problems before they occur. We have comprehensive know-how in the construction and composition of RINOL parking deck coating systems and industrial fl oors. We are happy to make this knowledge available to our customers at an early stage.
PRODUCTION:
All components and constituents of our RINOL car park coating systems are developed, produced and tested by us ourselves. That guarantees top quality, fastest availability and optimal properties of our products.
INSTALLATION:
Our industrial fl oor systems only unfold their full functionality with professional installation, under observance of the highest quality control guidelines. Throughout the world RINOL industrial fl oors are a byword for reliability, precision, quality and cost-eff ectiveness!
